#include <EvenOddSchurDifferentiable.h>

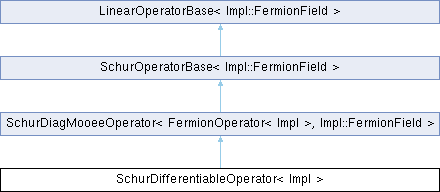

Inheritance diagram for SchurDifferentiableOperator< Impl >:

Public Types
typedef FermionOperator< Impl >	Matrix

Public Member Functions
	INHERIT_IMPL_TYPES (Impl)
	SchurDifferentiableOperator (Matrix &Mat)
void	MpcDeriv (GaugeField &Force, const FermionField &U, const FermionField &V)
void	MpcDagDeriv (GaugeField &Force, const FermionField &U, const FermionField &V)
virtual void	Mpc (const Impl::FermionField &in, Impl::FermionField &out)
virtual void	MpcDag (const Impl::FermionField &in, Impl::FermionField &out)
virtual void	MpcDagMpc (const Impl::FermionField &in, Impl::FermionField &out)
virtual void	HermOpAndNorm (const Impl::FermionField &in, Impl::FermionField &out, RealD &n1, RealD &n2)
virtual void	HermOpAndNorm (const Impl::FermionField &in, Impl::FermionField &out, RealD &n1, RealD &n2)
virtual void	HermOp (const Impl::FermionField &in, Impl::FermionField &out)
virtual void	HermOp (const Impl::FermionField &in, Impl::FermionField &out)
void	Op (const Impl::FermionField &in, Impl::FermionField &out)
void	Op (const Impl::FermionField &in, Impl::FermionField &out)
void	AdjOp (const Impl::FermionField &in, Impl::FermionField &out)
void	AdjOp (const Impl::FermionField &in, Impl::FermionField &out)
void	OpDiag (const Impl::FermionField &in, Impl::FermionField &out)
void	OpDiag (const Impl::FermionField &in, Impl::FermionField &out)
void	OpDir (const Impl::FermionField &in, Impl::FermionField &out, int dir, int disp)
void	OpDir (const Impl::FermionField &in, Impl::FermionField &out, int dir, int disp)
void	OpDirAll (const Impl::FermionField &in, std::vector< Impl::FermionField > &out)
void	OpDirAll (const Impl::FermionField &in, std::vector< Impl::FermionField > &out)

Data Fields
FermionOperator< Impl > &	_Mat

Detailed Description

template<class Impl>
class SchurDifferentiableOperator< Impl >

Definition at line 43 of file EvenOddSchurDifferentiable.h.

Member Typedef Documentation

◆ Matrix

template<class Impl>

typedef FermionOperator<Impl> SchurDifferentiableOperator< Impl >::Matrix

Definition at line 48 of file EvenOddSchurDifferentiable.h.

Constructor & Destructor Documentation

◆ SchurDifferentiableOperator()

template<class Impl>

SchurDifferentiableOperator< Impl >::SchurDifferentiableOperator ( Matrix & Mat )

inline

Definition at line 50 of file EvenOddSchurDifferentiable.h.

References SchurDiagMooeeOperator< FermionOperator< Impl >, Impl::FermionField >::SchurDiagMooeeOperator().

Member Function Documentation

◆ INHERIT_IMPL_TYPES()

template<class Impl>

SchurDifferentiableOperator< Impl >::INHERIT_IMPL_TYPES ( Impl )

◆ MpcDeriv()

template<class Impl>

void SchurDifferentiableOperator< Impl >::MpcDeriv	(	GaugeField &	Force,
		const FermionField &	U,
		const FermionField &	V )

inline

Definition at line 52 of file EvenOddSchurDifferentiable.h.

References SchurDiagMooeeOperator< FermionOperator< Impl >, Impl::FermionField >::_Mat, conformable(), DaggerNo, Even, Odd, setCheckerboard(), and U.

Referenced by GeneralEvenOddRatioRationalPseudoFermionAction< Impl >::deriv(), OneFlavourEvenOddRationalPseudoFermionAction< Impl >::deriv(), TwoFlavourEvenOddPseudoFermionAction< Impl >::deriv(), and TwoFlavourEvenOddRatioPseudoFermionAction< Impl >::deriv().

◆ MpcDagDeriv()

template<class Impl>

void SchurDifferentiableOperator< Impl >::MpcDagDeriv	(	GaugeField &	Force,
		const FermionField &	U,
		const FermionField &	V )

inline

Definition at line 97 of file EvenOddSchurDifferentiable.h.

References SchurDiagMooeeOperator< FermionOperator< Impl >, Impl::FermionField >::_Mat, conformable(), DaggerYes, Even, Odd, setCheckerboard(), and U.

Referenced by GeneralEvenOddRatioRationalPseudoFermionAction< Impl >::deriv(), OneFlavourEvenOddRationalPseudoFermionAction< Impl >::deriv(), TwoFlavourEvenOddPseudoFermionAction< Impl >::deriv(), and TwoFlavourEvenOddRatioPseudoFermionAction< Impl >::deriv().

◆ Mpc()

virtual void SchurDiagMooeeOperator< FermionOperator< Impl >, Impl::FermionField >::Mpc	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Implements SchurOperatorBase< Impl::FermionField >.

Definition at line 362 of file LinearOperator.h.

◆ MpcDag()

virtual void SchurDiagMooeeOperator< FermionOperator< Impl >, Impl::FermionField >::MpcDag	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Implements SchurOperatorBase< Impl::FermionField >.

Definition at line 372 of file LinearOperator.h.

◆ MpcDagMpc()

virtual void SchurOperatorBase< Impl::FermionField >::MpcDagMpc	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Definition at line 323 of file LinearOperator.h.

◆ HermOpAndNorm() [1/2]

virtual void SchurOperatorBase< Impl::FermionField >::HermOpAndNorm	(	const Impl::FermionField &	in,
		Impl::FermionField &	out,
		RealD &	n1,
		RealD &	n2 )

inlinevirtualinherited

Definition at line 329 of file LinearOperator.h.

◆ HermOpAndNorm() [2/2]

virtual void SchurOperatorBase< Impl::FermionField >::HermOpAndNorm	(	const Impl::FermionField &	in,
		Impl::FermionField &	out,
		RealD &	n1,
		RealD &	n2 )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 329 of file LinearOperator.h.

◆ HermOp() [1/2]

virtual void SchurOperatorBase< Impl::FermionField >::HermOp	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Definition at line 336 of file LinearOperator.h.

◆ HermOp() [2/2]

virtual void SchurOperatorBase< Impl::FermionField >::HermOp	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 336 of file LinearOperator.h.

◆ Op() [1/2]

void SchurOperatorBase< Impl::FermionField >::Op	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlineinherited

Definition at line 340 of file LinearOperator.h.

◆ Op() [2/2]

void SchurOperatorBase< Impl::FermionField >::Op	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 340 of file LinearOperator.h.

◆ AdjOp() [1/2]

void SchurOperatorBase< Impl::FermionField >::AdjOp	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlineinherited

Definition at line 343 of file LinearOperator.h.

◆ AdjOp() [2/2]

void SchurOperatorBase< Impl::FermionField >::AdjOp	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 343 of file LinearOperator.h.

◆ OpDiag() [1/2]

void SchurOperatorBase< Impl::FermionField >::OpDiag	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlineinherited

Definition at line 347 of file LinearOperator.h.

◆ OpDiag() [2/2]

void SchurOperatorBase< Impl::FermionField >::OpDiag	(	const Impl::FermionField &	in,
		Impl::FermionField &	out )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 347 of file LinearOperator.h.

◆ OpDir() [1/2]

void SchurOperatorBase< Impl::FermionField >::OpDir	(	const Impl::FermionField &	in,
		Impl::FermionField &	out,
		int	dir,
		int	disp )

inlineinherited

Definition at line 350 of file LinearOperator.h.

◆ OpDir() [2/2]

void SchurOperatorBase< Impl::FermionField >::OpDir	(	const Impl::FermionField &	in,
		Impl::FermionField &	out,
		int	dir,
		int	disp )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 350 of file LinearOperator.h.

◆ OpDirAll() [1/2]

void SchurOperatorBase< Impl::FermionField >::OpDirAll	(	const Impl::FermionField &	in,
		std::vector< Impl::FermionField > &	out )

inlineinherited

Definition at line 353 of file LinearOperator.h.

◆ OpDirAll() [2/2]

void SchurOperatorBase< Impl::FermionField >::OpDirAll	(	const Impl::FermionField &	in,
		std::vector< Impl::FermionField > &	out )

inlinevirtualinherited

Implements LinearOperatorBase< Impl::FermionField >.

Definition at line 353 of file LinearOperator.h.

Field Documentation

◆ _Mat

FermionOperator< Impl >& SchurDiagMooeeOperator< FermionOperator< Impl >, Impl::FermionField >::_Mat

inherited

Definition at line 360 of file LinearOperator.h.

Referenced by SchurDifferentiableOperator< Impl >::MpcDagDeriv(), and SchurDifferentiableOperator< Impl >::MpcDeriv().

The documentation for this class was generated from the following file:

Grid/qcd/action/pseudofermion/EvenOddSchurDifferentiable.h
